Lowest-profile 3216-footprint tantalum capacitor is just 0.5-mm high

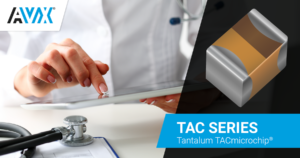

AVX Corporation has extended its TACmicrochip Series with the lowest-profile 3216-footprint tantalum capacitor currently available on the market. Measuring just 0.5mm high, the first new “I” case capacitor (EIA Metric 3216-05) is rated for 10μF and 6.3V, but will be followed by future code releases to further extend the offering. The full line of TACmicrochip capacitors, which has also offered the industry’s lowest-profile 1206-06 tantalum capacitors since early 2015, is currently available in 11 case sizes with footprints spanning 1005 to 3528, heights ranging from 0.5–1.5mm, capacitance values spanning 0.10–150μF, and voltage ratings spanning 2–25V.

In addition to exhibiting high capacitance in an extremely low profile package designed to contribute to overall space and weight reductions in end products, the new 3216-05 “I” case TACmicrochip capacitors also deliver all of the standard benefits of tantalum technology, including: inherent immunity to piezoelectric noise and higher stability, reliability, and temperature performance than comparable MLCCs. Capable of being embedded in 0.8mm-thick PCBs or designed into the latest generation of extremely thin handheld devices, TACmicrochip capacitors are ideal for use in a wide variety of medical applications, including hearing aids and other non-life-support devices, as well as in audio and power amplifier modules, embedded electronics applications, including near field communication (NFC) systems and smart cards, and as coupling/decoupling capacitors in industrial, handheld, and wearable electronics.

Manufactured using a tantalum wafer process to achieve the high levels of mechanical tolerance required for ultra miniature devices, TACmicrochip capacitors feature an enhanced internal construction that eliminates the space-consuming elements of conventional molded J-leaded tantalum capacitors, including the anode wire, lead frame, and the need for larger wall thicknesses. Rated for use in temperatures spanning -55°C to +125°C, the series is generally supplied with tin over nickel terminations, but gold over nickel options are available as well.
