Designing a DAC-controlled, high-side constant current source

December 17, 2020 By Aimee Kalnoskas

by KlausST, supermoderator on EDABoard.com

Here I’d like to show how to design a DAC controlled high -side constant current source. Since it is often used as 0..20mA (or 4..20mA) current loop interface, we will focus on the interface requirements.
* low speed ( maybe some 10Hz up to some kHz)
* high precision
* low drift
* high stability
* ruggedness

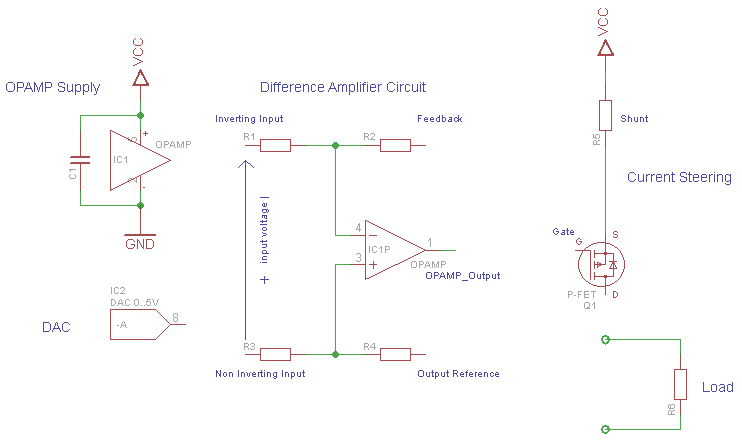

What we need:
* power source: VCC, GND, Let´s say VCC = 12V
* DAC
* Opamp
* MOSFET (you could use a PNP transistor, but base current causes an error in load current. Mosfet-gate current is about zero; thus the MOSFET solution is more precise)
* some Rs, Cs, Ds..

I decided to use a “difference amplifier circuit” because it’s easy to calculate.

* Opamp supply: every opamp needs power to operate, and it needs a capacitor to stabilize this power supply — 100nF close to the opamp is often a good value.
* Difference amplifier circuit: simple circuit: R1 = R3, R2 = R4, Gain = R2 / R1
Operation: It simply regulates the opamp_output in a way that (V_Feedback – V_OuptutRefernce) = gain x (V_NonInvertingInput – V_InvertingInput)
* DAC: use one with voltage output. This one has an output voltage range 0…5V
* MOSFET: P-Channel, no special one needed. Specifications are: Vcc, I_load, P_tot = VCC x I_Load. Add some headroom to every value.

Current steering circuit
We want to regulate load current. All load current goes through Mosfet_Drain and Mosfet_Source and, therefore, it goes through the shunt (R5). If we know the value of R5 and the voltage across R5 we know the load current.

(1) Thus we feed back (measure) the voltage across R5 to control the load current.
Varying the gate voltage will cause the load current to vary.
To make the P-channel MOSFET (more) conductive, the voltage at the gate referenced to the source needs to go (more) negative.

(2) The feedback voltage is across R5. This means the feedback voltage is referenced to VCC so we need to connect VCC to the output reference of the difference amplifier circuit.

(3) The OPAMP_ouptut should control the gate of the MOSFET.
To avoid ringing, it´s a good idea to connect OPAMP_output to Mosfet_gate with a resistor. The resistor value is not critical for this low-speed application. We use 1 kΩ. (The higher the expected regulation speed, the lower the resistor)

(4) The load is connected to MOSFET and GND

How to connect the DAC
The higher the DAC output voltage, the higher the load current. And from what I previously described, we know: The lower the gate voltage, the higher the output current.
And because gate voltage = OpampOutput voltage: The higher the DAC voltage, the lower the OpampOutput voltage. This is an inverting operation.
(5) This tells us we need to connect the DAC output to the inverting input

(6) And because the DAC output is GND referenced we need to connect the noninverting input to GND

Device values
Shunt: the current is 0..20mA. The voltage drop across the resistor should be large enough to get good measurable feedback voltage, but not too much because it limits the voltage across the load. Let´s say 2V @ 20mA is a good compromise. –> R = V/I = 100 Ohms

R1, R2, R3, R4: High impedance may cause noise and reduces speed. Low impedance causes high current, and thus, it stresses the DAC output. For low DAC output current, we choose a relatively high-value resistor: 100k Ohms. (For sure one could use 10k for lower noise)
This is R1. But we know R3 = R1. Thus R3 is 100k, too.
To get the value for R2 and R4 we need to know the gain: |Gain| = |OutputVoltage / InputVoltage|.
Input voltage is the DAC voltage. 0..5V. Output voltage is the ShuntVoltage = 0..2V.
Thus gain = 2V / 5V = 0.4
Thus R2 = R4 = R1 x 0.4 = 40k (DifferenceAmplifierCircuit formula)
(For a real application I recommend to add some headroom and thus calculate wiith a of 10% higher load current: 22mA –> V_Shunt = 2.2V –> gain = 0.44 –> R2, R4 = 44k)

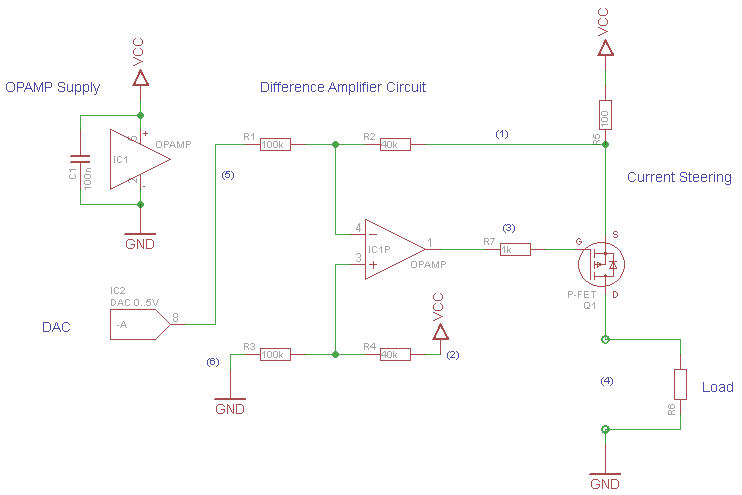

Now the circuit looks like this:

Improvements:
(7) Stability: The path from OPAMP_Output –> R7 –> MOSFET –> R5 –> R2 –> inverting input causes delay. This delay may cause instability, like ringing and continuous oscillations.
To avoid this, one adds a capacitor directly from opamp output to inverting input.
It forms a feedback with a cutoff frequency that depends on the parallel circuit of R1||R2. (28k6)
For a 4..20mA loop, a cutoff frequency of about 1kHz is a good value. thus C = 1/( 2 x Pi x f x R) = 5.6nF –> use a 4n7nF for C2
(The smaller the capacitor, the higher the cutoff frequency, the faster the regulation response, but the higher the risk for instability)

(8) Limiting V_GS:
Especially with higher VCC, there is the risk that V_GS of the MOSFET is exceeded by the OpampOutput. Thus a Zener diode is a simple solution to limit V_GS. Zener voltage needs to be less than the V_GS limit.

(9) Limiting V_DS:
Drain signal is the signal to the load. Thus it is expectable that can be touched by a user. (Maybe it is feed via connectors and cables) Therefore it is prone to ESD.
To protect the MOSFET against ESD, we install a Zener diode across the MOSFET. The Zener rating needs to be higher than VCC but lower than V_DS rating of the MOSFET.

(10) Improving PSRR: (power supply rejection ratio)
For a good DifferenceAmplifierCircuit R2 = R4. But in your case, R2 is in series with the shunt. For precise regulation, we need to take care of this. Otherwise, a variation in VCC gives a variation in I_Load. We could try to install a 39k9 resistor in the place of R2. But it may be hard to find.
The simpler solution is to add the shunt value (100 Ohms) to the R4 value.
This causes a small change in gain.

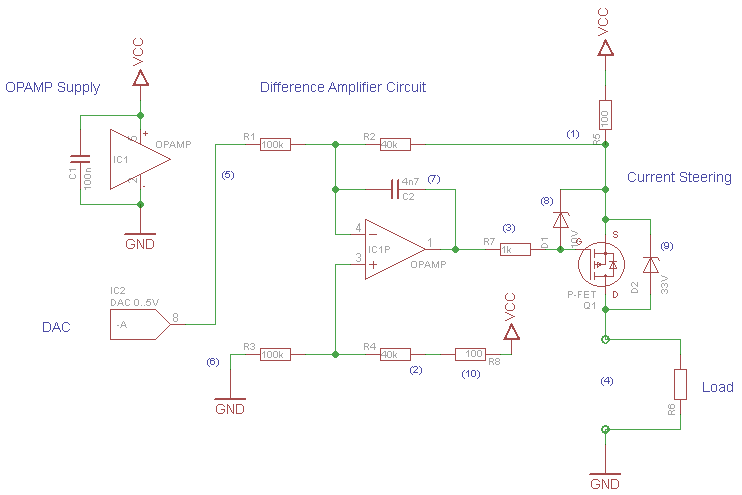

Then the complete circuit looks like this.
