SAW filters target Wi-Fi use with steep skirts, minimal insertion loss

April 3, 2017 By Aimee Kalnoskas

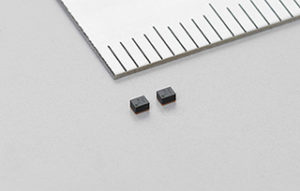

Murata Manufacturing Co., Ltd. has released a new Incredibly High Performance (IHP) SAW filter (measuring just 1.1 x 0.9 mm) for Wi-Fi applications that delivers greater steepness, insertion reduction, and temperature characteristic stability compared to conventional models.  Using the company’s new proprietary SAW technology to achieve these benefits, the SAFQ2G45MA0G0A series is ideal for ISM2.4GHz RF circuits in mobile devices, such as smartphones and tablets.

Specific features include:
– High-Q performance with IHP SAW technology offers low insertion loss and greater steepness filter characteristics;

-Superior temperature characteristics, a defining feature of IHP SAW; and
-A flexible production system derived from the inheritance of SAW processes.

Current smartphone and tablet devices require Wi-Fi (ISM2.4GHz) functionality. Band7/30/40/41 and other LTE bands have seen increased use near the 2.4 GHz band in recent times, and with this there are increased calls for Wi-Fi (ISM2.4GHz) filters to come equipped with greater steepness and low insertion loss filter characteristics, in addition to stable temperature characteristics in order to prevent mutual interference with these LTE bands. Providing support for such was difficult with conventional SAW devices, giving competitor company filters based on BAW technology the advantage in this field.

With the application of a proprietary SAW technology (I.H.P. SAW) allowing for the transmission of SAW energy with greater efficiency, Murata has successfully developed a Wi-Fi (ISM2.4GHz) filter with characteristics (steepness, low insertion loss, temperature characteristics) notably superior to that provided by conventional BAW technology.
