Streamlining PCB-to-wire harness design integration with EDA tools

Automotive wiring harnesses consolidate multiple wires and cables into a single organized system, transmitting power and signals between electronic control units (ECUs). These harnesses connect PCB-mounted electronics to the broader electrical system, supporting advanced driver-assistance systems (ADAS), powertrain control, airbags, infotainment, telematics, and body electronics.

This article examines the PCB-to-wire harness design flow and highlights key integration challenges, including tool fragmentation, limited interoperability, data inconsistency, and a lack of reuse. It also discusses how EDA and software tools unify design environments, improve accuracy and efficiency through real-time validation, and streamline collaboration and production readiness.

Understanding the PCB-to-wire harness design flow

As shown in Figure 1, the PCB-to-wire harness design flow begins with automotive engineers defining electrical schematics based on functional requirements.

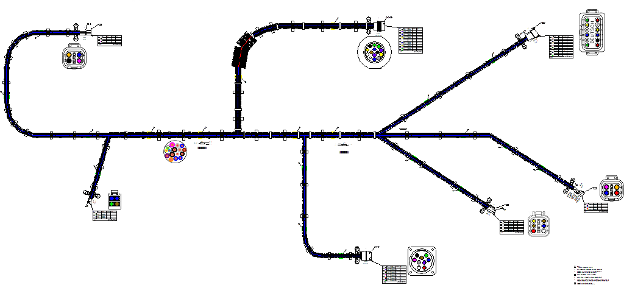

Figure 1. A complete automotive wiring harness layout, illustrating bundled wire routes, connector interfaces, and branch configurations for system integration. (Image: Zuken)

These schematics specify the components present, their connections, and their locations. They also define connector and interface types, as well as installation positions. Designers then generate the harness layout, taking into account product variants across various vehicle models. A 2D representation follows, detailing wire bundling, conduit or tape coverings, and connection points to vehicle PCBs.

PCB design data — such as connector pinouts, signal assignments, wire gauge, color, and routing constraints — integrates into the harness layout to ensure alignment with the board design. Notably, accurate interface mapping between PCBs and harnesses is essential to prevent signal mismatches and integration errors.

3D tools simulate the physical installation environment to validate the 2D design’s fit and function. Electrical and mechanical tools exchange data to guide the placement of clips, sleeves, and ties. Once finalized, the design is moved to manufacturing for wire cutting, pre-assembly, and final harness assembly.

The challenges of PCB-to-wire harness design integration

Managing PCB-to-wire harness integration is increasingly difficult in complex software-defined vehicles (SDVs). Whether internal combustion engine (ICE), hybrid, or electric vehicle (EV), SDVs typically incorporate more ECUs and demand higher data throughput and tighter integration between electrical and software domains. Additional design and manufacturing challenges include:

Tool fragmentation and limited interoperability: PCB and harness design often involve separate EDA, CAD, and MCAD tools with minimal integration. This complicates collaboration and reduces traceability across teams.
Lack of system integration: design changes in one domain may not propagate to others, requiring manual updates and data transfers that increase the risk of errors, delay progress, and disrupt documentation and version control.
Data inconsistency and limited reuse: disconnected tools and databases can result in divergent designs, reducing reuse across platforms, increasing rework, and contributing to costly field issues or recalls.
Variant management complexity: supporting multiple vehicle configurations within a shared architecture requires a structured approach to variant management. Without it, design and manufacturing workflows fragment, increasing the risk of duplication and inconsistencies.
Insufficient validation during design: some design flows rely on physical prototypes and postpone electrical verification until late in the cycle. Issues such as voltage drop, thermal stress, connector misalignment, or electromagnetic compatibility (EMC) problems are more costly and difficult to resolve if not identified early in the development process.

Unifying the design environment

EDA and software platforms that support unified design flows help address key PCB-to-wire harness integration challenges such as tool fragmentation, inconsistent data, and late-stage error detection. Cloud-based collaboration environments enable distributed teams to work in parallel, review designs in real time, and maintain a shared source of truth. These platforms provide synchronized, automated environments that span schematic capture, layout, simulation, and manufacturing handoff.

Many EDA and software platforms support PCB and harness design within a single workspace, eliminating the need for manual data transfers between disconnected tools. Changes to PCB schematics, such as connector updates, automatically propagate to the harness layout and vice versa. This reduces translation errors and ensures consistency across the system.

Optimizing accuracy and efficiency through real-time validation

Integrated EDA and software platforms synchronize connector and signal data in real time to support PCB-to-wire harness integration. Built-in design rule checks and validation routines detect issues early, such as invalid connections, voltage drops, and mismatches in wire or fuse sizing.

As shown in Figure 2, real-time synchronization maintains alignment across schematic, harness, and tabular views, enabling fast, accurate updates throughout the design.

Figure 2. Real-time drawing synchronization ensures wire data, connector configurations, and design rule checks remain consistent across schematic, harness, and tabular views. (Image: Cadonix)

Simulation tools support DC and transient analysis, as well as electrical performance verification under varying load conditions, and fault analysis aligned with ISO 26262 functional safety requirements. Automation further improves efficiency by streamlining tasks such as schematic capture, layout, and simulation setup.

Streamlining collaboration and production readiness

EDA tools and software platforms with ECAD-MCAD integration support concurrent PCB-to-wire harness design across electrical and mechanical domains. These tools allow engineers to visualize harness routing within enclosures, check for clearance violations, and optimize wire paths. This helps to prevent physical interferences and assembly issues early in the design cycle.

To maintain alignment across domains, mechanical updates can be pushed directly to the electrical design, reducing rework and improving cross-functional coordination. Structured component libraries with validated connectors, terminals, and wires help maintain traceability and design consistency. Teams can reuse harness modules and PCB subassemblies across product lines, simplifying variant management and minimizing duplication.

Figure 3. Manufacturing process modeling tools in Siemens Capital Harness TVM define detailed wire harness operations and tasks, supporting early-stage cost analysis and production planning. (Image: Siemens Digital Industries Software)

As shown in Figure 3, task-based manufacturing tools provide detailed definitions of wire harness operations. These include wire cutting, connector loading, and splicing, facilitating accurate cost estimation, line balancing, and process optimization before production begins.

Once the design is finalized, EDA platforms automatically generate production-ready documentation, such as bills of materials (BOMs), wire tables, and manufacturing drawings. This capability streamlines procurement and supports a smooth handoff to manufacturing.

Summary

PCB-to-wire harness integration introduces data, system, and workflow challenges throughout the automotive design cycle. EDA and software platforms address these issues through unified design environments, real-time validation, and integration of ECAD and MCAD. These tools help maintain data consistency, reduce PCB design cycles from weeks to days, and significantly shorten verification setup time. They also support reliable production across increasingly complex vehicle architectures.
