Stress & Strain: Fundamental principles

The mechanical strain induced on electronic components due to mechanical and thermal stress is an important aspect of their performance consistency and limitations; stress is also used to enable some materials to provide critical electronic functions.

Although electronic systems and circuits invoke intangibles such as voltages, currents, power, EM fields, and Maxwell’s equations — to cite a few aspects — they are physically built from mechanical structures called components in the form of transistors, resistors, oscillators, connectors, logic gates, ICs, circuit boards….you get the idea. These components are subject to stresses from various sources, and resultant stain. Digital components are less affected by the nature of the digital world — but only up to the point where parameter values cross certain thresholds. For analog components, stress and its impact are issues that are often a concern, as stress-induced changes in component specifications will affect circuit performance — it is an issue of by how much.

Materials science is a building block of electronic components of all types. This FAQ will look at one aspect of this discipline, namely the fundamentals of stress and strain and their cause and implications. It will then look at how stress and strain are used and how they can be detrimental to component and system performance, as well as how they are the basis for the functioning of some components.

Q: I see the words “stress” and “strain” used interchangeably. Are they the same?

A: No, they are not. A more formal definition is this:

Strain is the response of a system to an applied stress. When a material is loaded with a force, it produces a stress, which then causes a material to deform. Engineering strain is defined as the amount of deformation in the direction of the applied force divided by the initial length of the material.

Q: What causes stress?

A: It can be caused by basic mechanical loading or thermally induced expansion or contraction.

Q: What are the two basic types of stress?

A: Stress can be tensile (stretching, pulling apart) or compressive (squeezed together). For mechanical-loading stress, the direction of strain is in the same direction as the stress that induced it (it’s a little more complicated for thermally induced strain).

Q: What is the fundamental relationship between stress and resultant strain?

A: A stress/strain graph usually tells the fundamental story. This stress/strain curve can take many shapes, depending on the material and the amount of stress (Figure 1). The graph reveals many areas of interest: Young’s modulus, where the stress/strain is reasonably linear; the yield point, at which the material no longer returns to its original dimension; and the fracture point. Some materials have a barely linear relationship with unusual stress//strain curves. However, the curve shown is representative of most materials.

Fig 1: The stress versus strain graph tells the basic story of the mechanical properties of a material, and there are standardized tests set-ups for nearly every conceivable material and application. (Image: Chicago Metal Rolled Products)

Q: What are the units of the stress/strain measurement?

A: It is the elongation (or compression) dimension divided by the original dimension, so it is unitless. However, it is also common practice to state it as the ratio of two length units, such as mm per mm or inches per inch, percent, or parts per million (ppm). A measurement might be cited as 10 ppm, or 10 microinches/inch, or 0.001%. For most materials, the strain number is quite small, but for others, such as rubber and some plastics, it might be quite large: a 1-cm rubber band that stretches 0.5 cm under the specified applied stress has a strain of 50% or 0.5 cm/cm.

Q: How are strain test set up?

A: First, there are well-defined standards for almost every conceivable stress/strain measurement and material, some of which are vendor-specific and many of which are defined by the industry and professional associations such as the ASTM (American Society for Testing of Materials). These test standards define test equipment, set-up, and interpterion of results and span almost every conceivable material and situation, such as steel and adhesives. As a result, tests can be repeated and compared across the industry.

Q: How is the strain itself measured?

A: There are many ways. The most common is using a strain gage (often spelled gauge), a small component with resistance that varies linearly with its elongation; the nominal resistance of mist commercial strain gages is 120 Ω, 350 Ω, and 1,000 Ω. The strain gage is “excited” by a modest current, on the order of a few milliamperes (to minimize self-heating), and the voltage across it is measured, often using a Wheatstone bridge configuration (Figure 2). The gage is attached to the material under test with a strong adhesive. Strain gages can be quite accurate if used properly. Common nominal resistance values of commercial strain gages are 120 Ω, 350 Ω, and 1,000 Ω.

Fig 2: The resistive strain gage is a common transducer used for material stress/strain tests, usually connected in a Wheatstone bridge configuration. (Image: Analog Devices)

In some cases, an extensometer is used to measure strain; this is a caliper-like instrument with a strain gage in its body y that can measure with high precision but does not need to be glued to the sample (Figure 3). For cases where the amount of strain is too small to measure with a strain gage, advanced systems such as laser-based interferometers are used. The movement of the optical interference fringes is observed and can be used to calculate tiny, almost infinitesimal amounts of strain.

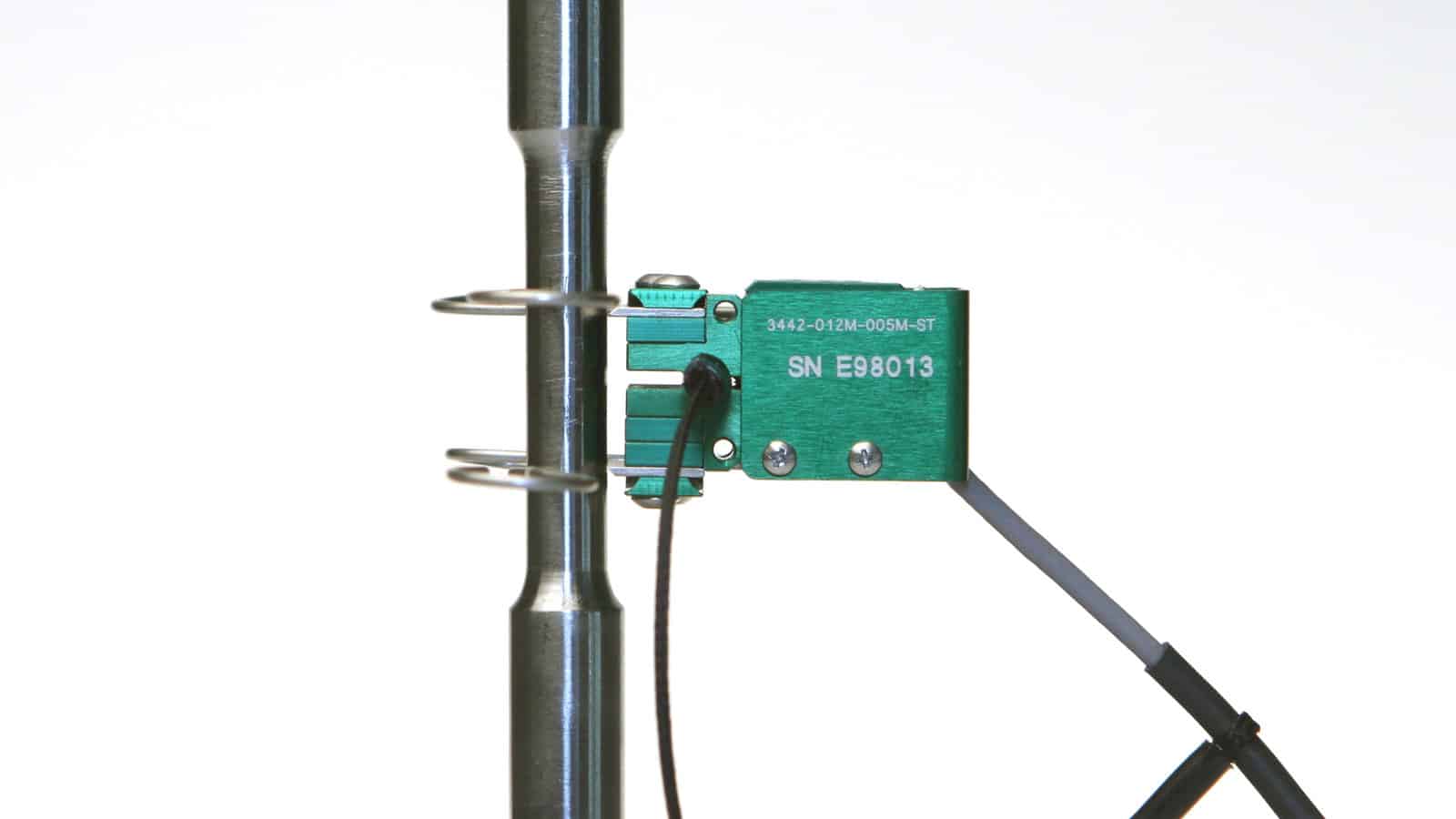

Fig 3: The extensometer uses a strain gage in its base housing but with added external “fingers” so it can be easily attached to the material under test. (Image: Epsilon Technology)

Q: How is the stress applied?

A: It depends on the test setup. In many cases, a special load frame is used (Figure 4). This is a machine that applies precisely measured amounts of force (load) to the sample under test while the elongation (or compression) measurement is made. A small frame can produce stress loads to several thousand pounds, while a larger one can deliver tens or even hundreds of thousands of pounds. Note that the “grips” or clamps that hold the sample under test are also complex, highly engineered elements of the test arrangement, and there are specialized grips for nearly every material, type of test, and load range.

Fig 4: The medium-range Instron 3360 Series Dual-Column Tabletop Testing Systems for tension and compression applications can apply stress up to 50 kN (11,250 lb). (Image: Instron Corp.)

In other cases, the material or component under test is heated or cooled in a test chamber, as temperature changes also represent a source of stress and induce strain. In fact, these thermal aspects are often a major for passive and active electronic components. Temperature changes speed up or slow down the energy levels of the electrons and molecules, of course. Changes in energy levels affect noise and leakage currents and shift many other parameter values. In addition, the expansion and contraction due to temperature changes can also affect component mechanical dimensions and relationships and, thus, electrical performance.

Q: Are these stress/strain tests slow-moving and static?

A: It depends on what attributes are being examined. The rate at which the stress is applied, called the shear rate, is often an important in the test, as nearly all materials are sensitive to it to some extent (Silly Putty is a classic example). For most tests, the first step is a simple single-direction, relatively slow pull or push; in many cases, the test cycle is then repeated slowly. Higher-rate cycling of these tests is needed for some situations and materials.

Part 2 of this FAQ will examine how stress and strain affect electronic components and how they are both essential for the functioning of some components and detrimental to others.
