Supercapacitors explained

Supercapacitors are a special type of electrochemical energy storage device noted for their ability to deliver sudden bursts of energy. Batteries typically provide the bulk energy required for sustained operation, whereas dielectric capacitors offer the rapid discharge rates necessary for filtering and pulse power. In such a scenario, supercapacitors address the gap between these two technologies.

Supercapacitors vs batteries and capacitors

To understand the utility of a supercapacitor, one must first analyze the Ragone plot, which maps specific energy (Wh/kg) against specific power (W/kg). As indicated in Figure 1, supercapacitors occupy a distinct region between capacitors and batteries.

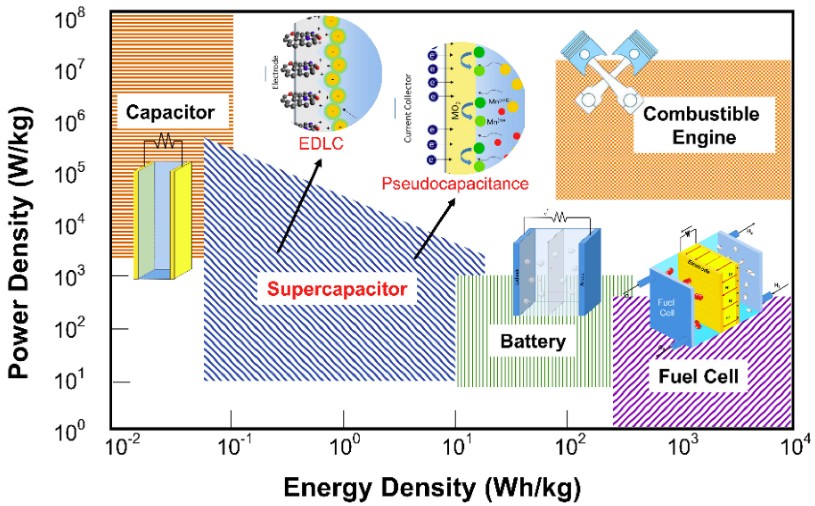

Figure 1. Ragone plot of supercapacitor and other commonly used battery technologies. (Image: Batteries, MDPI)

Fuel cells and Li-ion batteries provide high energy density but have limitations regarding power density and degradation during high-current cycling. Conventional capacitors offer high power output but minimal energy storage. Supercapacitors deliver specific power densities ranging from 10³ to 10⁴ W/kg. This capability allows them to manage high-current transients that protect the primary chemical energy source from thermal stress.

Why choose a supercapacitor over a regular capacitor?

Both supercapacitors (such as EDLCs) and traditional capacitors are passive components that store charge electrostatically, but their internal architectures differ. Traditional capacitors use a dielectric material to separate charged plates, which permits high voltage ratings but limits capacitance. Supercapacitors utilize an electrolyte and a porous electrode to create an electric double layer (EDL) with a separation distance in the nanometer range.

This separation yields capacitance values orders of magnitude higher than electrolytic capacitors, though with a lower breakdown voltage. Table 1 summarizes these technical distinctions.

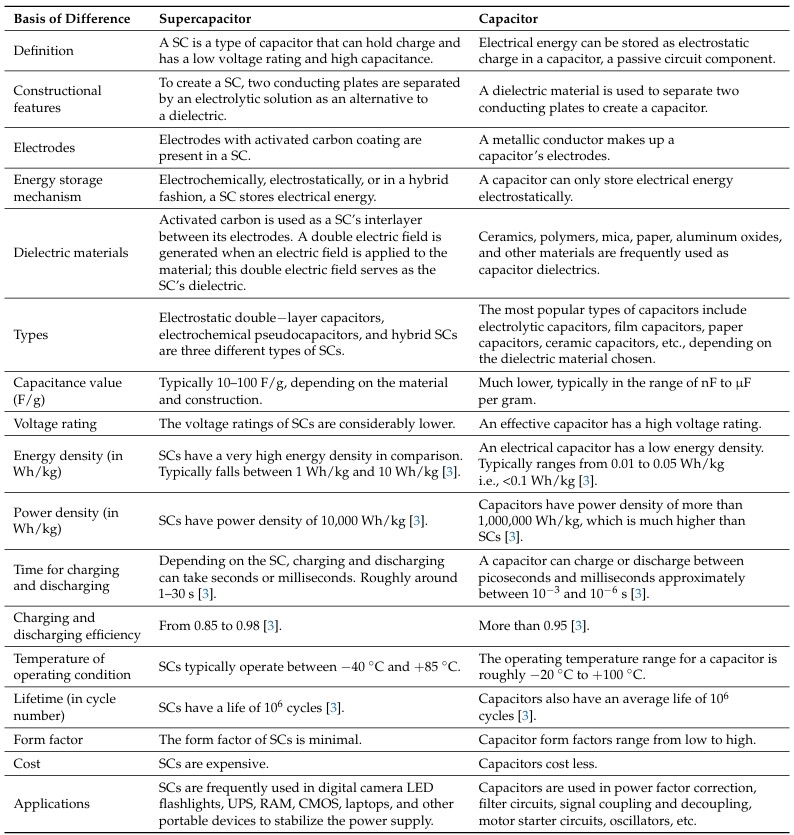

Table 1. Technical comparison of supercapacitors vs. conventional Capacitors. (Image: World Electric Vehicle Journal. MDPI)

The most significant difference is the trade-off between capacitance and voltage. Supercapacitors have a high capacitance value (e.g., 2,600 F) but a low voltage rating, typically confined to the 2.5 V to 2.7 V range. Conventional Capacitors have a low capacitance value (e.g., 5.6×10⁻⁴ F) but a high voltage rating (e.g., 200 V).

How do supercapacitors store energy?

This difference in voltage rating stems from the construction. Traditional capacitors use dielectric materials (like ceramics or polymers) that can withstand high electric fields. In contrast, supercapacitors rely on an electrolytic solution and the formation of an electric double layer between electrodes coated in activated carbon, which limits their maximum operating voltage.

The capacitance of a supercapacitor results from the high surface area of its electrode materials, which are often porous activated carbons or sustainable alternatives such as biochar. Charge storage occurs through two primary mechanisms, as shown in Figure 2:

Electric Double Layer Capacitance (EDLC): Depicted in Panel (b), ions from the electrolyte adsorb onto the electrode surface. This is a physical, non-Faradaic process, allowing for rapid cycling without the chemical degradation found in batteries.
Pseudocapacitance: Depicted in Panel (c), this involves fast, reversible redox reactions at the surface of specific electrode materials, such as metal oxides or conducting polymers. This Faradaic process increases energy density but may impact kinetics compared to pure EDLCs.

Figure 2. (a) Structure of supercapacitor, (b) Schematic of electric double layer effect, (c) Schematic of Faraday process. (Image: Frontiers in Energy Research)

Research in this field currently prioritizes the optimization of pore size distributions in biochar-derived electrodes. This is to align with the ion size of electrolytes, thereby maximizing the effective surface area for double-layer formation.

Summary

The supercapacitor serves a specific function in power electronics. By bridging the capabilities of batteries and conventional capacitors, it improves system efficiency and durability. In applications such as EV regenerative braking or wind turbine output smoothing, the supercapacitor manages high-power demands, preserving the lifespan of the primary energy storage system.
