What are attention mechanisms, and how do they work in speech and audio processing?

Attention mechanisms are very useful innovations in the field of artificial intelligence (AI) for processing sequential data, especially in speech and audio applications. This FAQ talks about how attention mechanisms work at their core, how they are used in automatic speech recognition systems, and how transformer architectures can handle advanced audio processing.

What are the core components of attention mechanisms?

At its core, an attention mechanism functions by utilizing three fundamental components that collaborate to identify which information deserves attention. The three fundamental components are query (Q), keys (K), and values (V). Your query represents the specific information you are seeking, the keys are like book titles or catalog entries that help you locate relevant materials, and the values contain the actual content you want to retrieve.

In neural networks, this procedure translates to a systematic mathematical process. The attention mechanism calculates similarity scores between queries and keys, determining how relevant each piece of input information is to the current processing step. These scores are then normalized using a softmax function to create attention weights that sum to one. Finally, these weights are used to create a context vector that highlights the most important information by combining the values in a weighted way.

The process is represented by the scaled dot-product attention formula:

Attention(Q,K,V) = softmax(QK^T/√dk)V

where the scaling factor prevents the dot products from becoming too large, which could push the softmax function into regions with extremely small gradients.

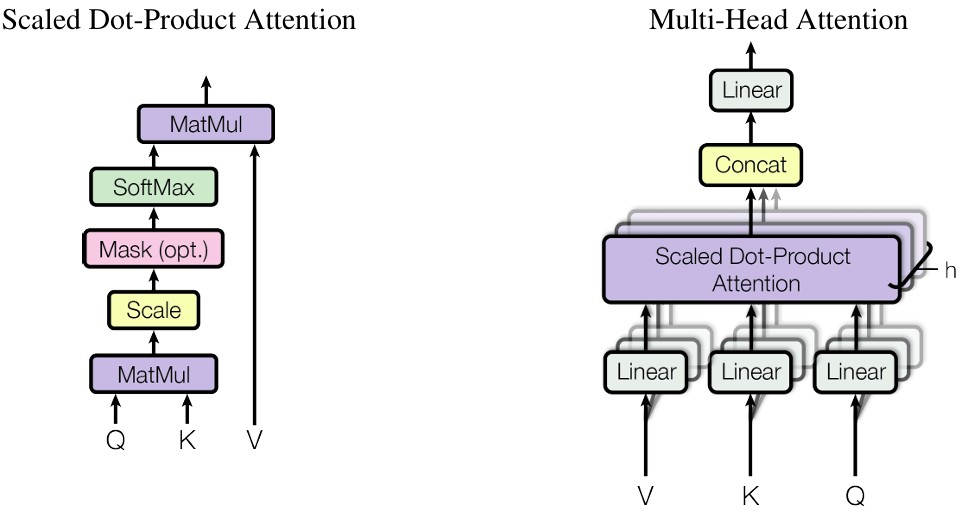

As illustrated in Figure 1, this process follows a clear computational pipeline. The left diagram shows how the three input components flow through matrix multiplication, scaling, optional masking, softmax normalization, and final weighted combination. The right side shows multi-head attention, which means that different learned projections and multiple attention mechanisms work together.

This lets the model see different kinds of relationships at the same time, such as temporal patterns, frequency dependencies, and semantic connections. This ability to process multiple tasks at once becomes important in complex audio situations where many sound effects happen at the same time.

How do attention mechanisms improve speech recognition?

An important problem with older automatic speech recognition systems was called a “information bottleneck.” In older encoder-decoder models, whole audio sequences were compressed into context vectors of a fixed length, which meant that important details were lost, especially in longer audio segments. Attention mechanisms got around this problem by letting decoders access different parts of the encoded audio on the fly at each stage of text generation.

Attention-based end-to-end models, such as Listen-Attend-Spell (LAS), are a big step forward. They directly connect speech signals to character or word sequences without needing separate models for sound, pronunciation, and language.

As shown in Figure 2, the LAS architecture shows how attention is implemented in three separate parts. As a hierarchical encoder, the “Listen” component works on audio features that are sent through it in several layers. The dotted lines show how the “Attend” mechanism dynamically focuses on the right parts of these encoded features for each step of decoding. The “Spell” part makes output sequences, and each step is based on attention-weighted context from the encoder.

It has been proven that these improvements work. Attention-based models get a 15.7% lower relative word error rate than baseline systems and a 36.9% lower rate compared to traditional phoneme-based approaches. As the system makes each phoneme or character, the attention mechanism focuses on the exact audio frames that go with that sound. This makes the alignment between the sounds and the textual output change over time.

How do transformers process audio differently?

The introduction of self-attention in the transformer architecture was a major breakthrough in audio processing. Instead of processing audio in a linear way like traditional recurrent approaches do, self-attention lets models look at the connections between all positions in an input sequence at the same time. This makes both long-range dependency modeling and computational efficiency better.

In self-attention, all queries, keys, and values come from the same sequence of inputs. This lets the model decide which audio frames are the most important when encoding a certain frame.

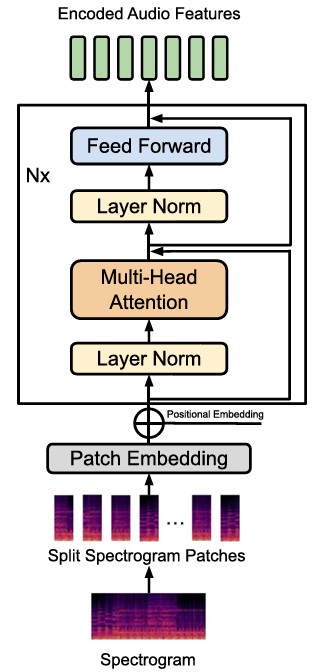

As shown in Figure 3, transformer-based audio encoders process spectrograms by splitting them into patches that can be processed in parallel. Each patch receives positional information and flows through multiple self-attention layers, where each layer analyzes relationships across the entire audio sequence simultaneously.

Multi-head attention builds on this idea by using multiple attention mechanisms at the same time with different learned projections. This lets models understand different kinds of relationships, such as those between time patterns, frequencies, and meanings.

Summary

Attention mechanisms have significantly improved speech and audio processing, evolving from a method to address issues in transitioning between sequences to becoming a crucial component of AI systems. By enabling dynamic focus on relevant information, they have achieved significant performance improvements in tasks ranging from speech recognition to audio understanding.

References

Automated audio captioning: an overview of recent progress and new challenges, Springer Nature
Attention based end to end Speech Recognition for Voice Search in Hindi and English, ResearchGate
Attention Mechanism In Audio Processing, Meegle
What is an attention mechanism?, IBM
Attention Is All You Need, arXiv
