What are the best practices for PCB-to-harness transitions?

Transition points between PCB traces and wire harnesses impact signal integrity, system-level reliability, and manufacturability. Improperly calibrated transition points can introduce impedance discontinuities, signal loss, or thermal stress. Mechanical strain and layout constraints also restrict routing flexibility, complicate manufacturing, and may contribute to long-term system failures.

This article outlines best practices for optimizing PCB-to-harness transition points and explains how EDA tools streamline the design process. It also explores domain-specific features that reinforce system reliability and support mechanical and systems integration.

Optimizing PCB-to-harness transition points

A well-engineered wire harness design addresses electrical performance, mechanical stress, and environmental requirements at PCB-to-harness transition points. The best practices outlined below highlight key recommendations for building production-ready interfaces that support consistent, reliable connections:

Match connectors to electrical ratings and verify compatibility with wire gauge and pitch. Incorrect selections can cause contact resistance, intermittent faults, or overheating at the termination point.
Use molded or structural strain relief to protect solder joints, guide wire routing, and streamline assembly access.
Apply overmolding, potting, or high IP-rated connectors in environments with dust or high humidity. These measures prevent corrosion, moisture ingress, and particulate contamination that can degrade signal or power transmission.
Keep traces short and wide for high-current paths, and use copper pours and thermal vias for heat dissipation. Optimized trace geometry lowers resistance, improves thermal performance, and ensures stable current delivery.
Maintain consistent impedance, adequate spacing, and shielding where needed, as shown in Figure 1. These crucial design techniques support signal integrity, reduce reflections, minimize crosstalk, and maintain waveform quality in high-speed or sensitive circuits.

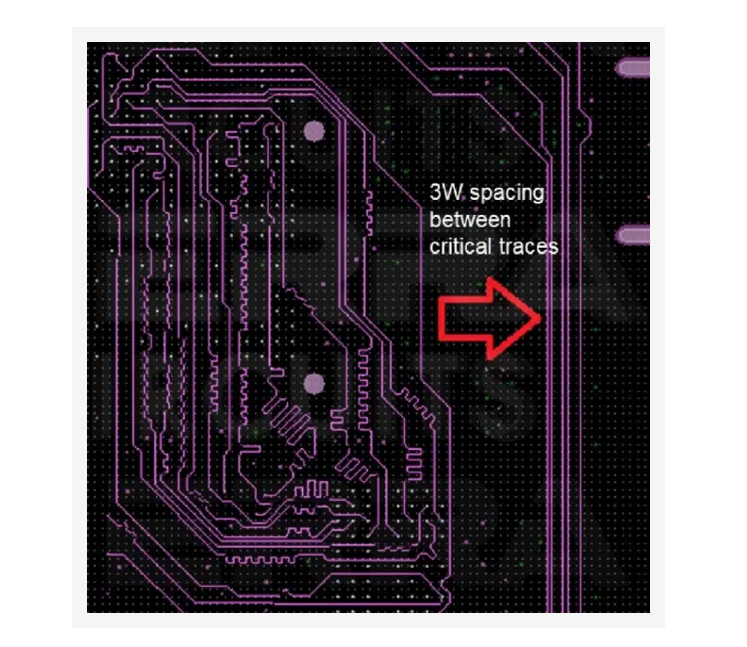

Figure 1. Maintaining 3W spacing between critical traces helps minimize crosstalk in high-speed layouts. (Image: Sierra Circuits)
Use continuous ground planes and stitching vias to minimize EMI and support return paths, as shown in Figure 2. Proper grounding controls noise propagation and maintains reference potential for differential signals.
Figure 2. Transition vias connect ground planes across PCB layers, reducing loop inductance in the return path. (Image: Sierra Circuits)
Prioritize through-hole or surface-mount connectors in challenging or dynamic environments and avoid lap soldering in high-reliability applications. Secure, repeatable terminations enhance durability and mitigate failure risks associated with mechanical or thermal cycling.
Create and share clear assembly drawings, pinout maps, and color codes to reduce errors and facilitate maintenance. Accurate and accessible documentation ensures consistency in production and simplifies troubleshooting throughout the product lifecycle.

How EDA tools optimize PCB-to-harness transitions

For decades, electrical engineers used disparate tools and manual workflows to architect PCB-to-harness transition points at the board connector level. Isolated design flows required duplicating data across platforms, often resulting in mismatched pinouts, incorrect wire assignments, and documentation errors.

Today’s advanced EDA tools streamline this process by integrating schematic capture, PCB layout, wire harness design, and simulation in a single environment. As shown in Figure 3, these platforms address electrical, mechanical, thermal, and signal integrity requirements for reliable PCB-to-harness transitions. They also support design validation, interface alignment, and traceable outputs.

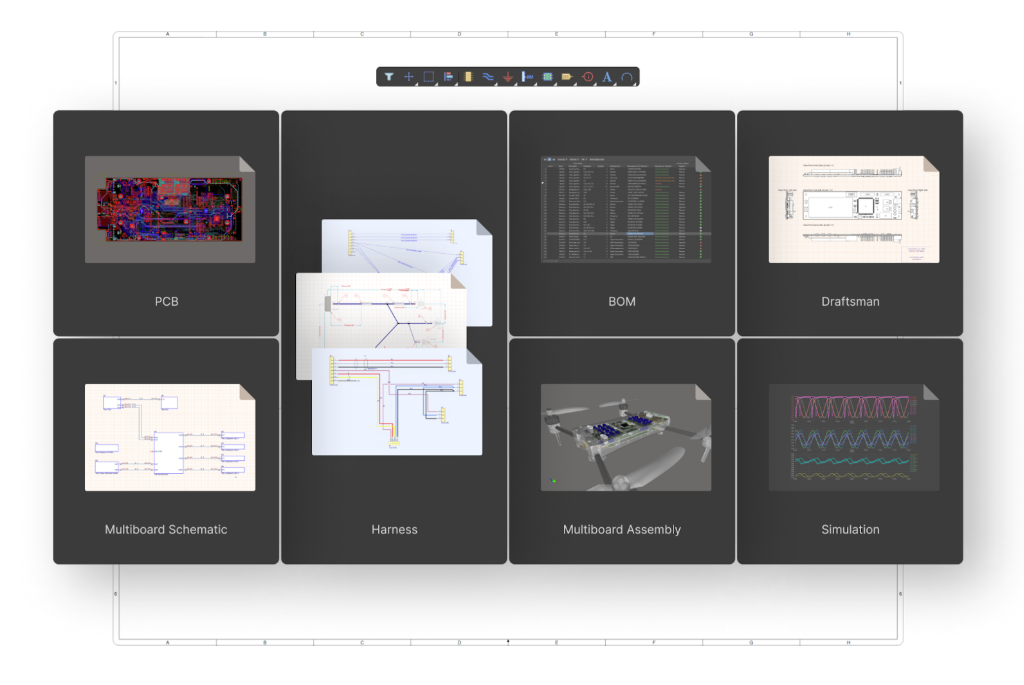

Figure 3. Unified PCB and harness design tools maintain signal continuity across schematic, layout, and wiring domains. (Image: Altium)

In a shared design environment, engineers develop PCB traces, connectors, and wire harnesses in parallel. Real-time synchronization ensures changes to schematics or component assignments propagate across domains, minimizing errors and reducing rework.

Domain-specific tools reinforce system reliability

Beyond layout integration, specialized EDA platforms incorporate simulation, rule enforcement, and analysis tools that directly support best practices for PCB-to-harness transition points. The following tool-driven features correspond to these best practices, enabling engineers to implement and verify design strategies in a structured, rules-based environment:

Design rule checks (DRCs) enforce voltage, current, insulation, and wire gauge limits, while connector libraries support proper terminal selection and pin mapping.
3D layout and MCAD integration validate connector positioning, strain relief geometry, and mechanical clearances for assembly.
Thermal simulations model heat dissipation across copper pours, traces, and thermal vias, facilitating layout adjustments to reduce localized hot spots.
Signal integrity tools detect impedance mismatches, reflections, and EMI coupling, enabling in-context refinement of shielding and grounding strategies.
Finite element method (FEM) simulations validate solder joint reliability, terminal retention, and connector strength under load or vibration.
Multi-board and harness routing views confirm connector orientation and wire clearance across complex system layouts.
Automated outputs reflect real-time design data, with version control and collaboration features ensuring cross-functional alignment.

Mechanical and systems integration support

Advanced EDA tools support digital twin modeling and model-based systems engineering (MBSE), facilitating early validation of connector placement, wire interfaces, and mechanical fit at PCB-to-harness transition points.

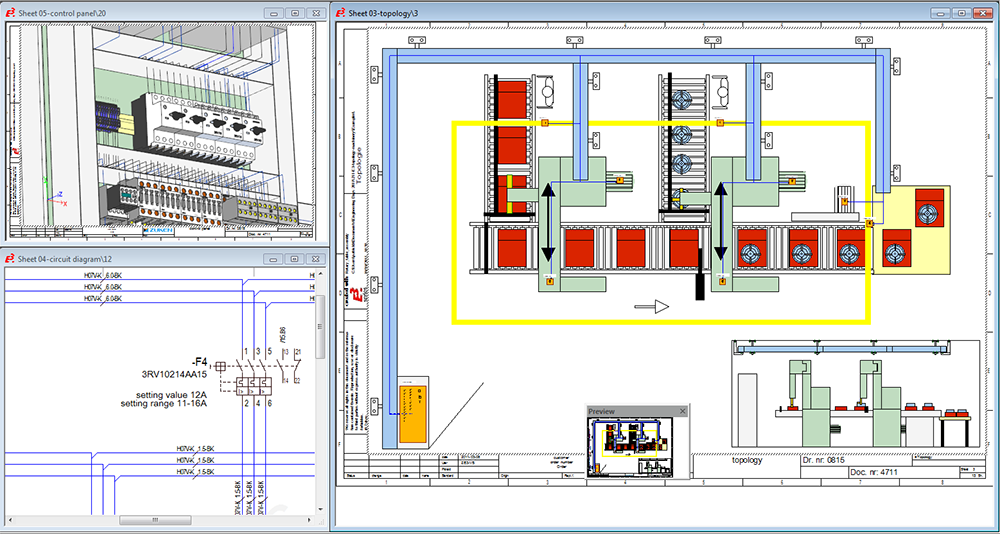

Figure 4. Integration of PCB, MCAD, and harness design domains enables parallel development, early validation, and reduced rework. (Image: Zuken)

As shown in Figure 4, these capabilities enable engineers to assess system-level integration before physical prototyping, thereby reducing design iterations and facilitating seamless transitions across complex multi-board assemblies.

These platforms also auto-generate synchronized schematics, BOMs, wire lists, pinouts, and assembly drawings. Design changes propagate instantly across all outputs, keeping manufacturing documentation current and accelerating time to market.

Summary

PCB-to-harness transitions at the board connector level must support signal integrity, system-level reliability, and manufacturability. Designers apply best practices such as implementing strain relief, maintaining impedance control, and selecting compatible connectors. Optimizing the trace geometry further reduces the risks of electrical and mechanical failure, helping to ensure consistent performance. EDA tools streamline PCB-to-harness transitions by unifying layout, harness design, and simulation, thereby enhancing the overall design process. Domain-specific features reinforce system reliability, supporting mechanical and systems integration across design teams.
