What are the seven basic logic gates in integrated circuits?

Logic gates efficiently process binary data to facilitate precise operations within integrated circuits (ICs). This article explains how these gates function and highlights their crucial role in digital and mixed-signal analog applications. It also reviews the seven most common logic gates, exploring key capabilities, operations, and use cases.

Understanding logic gate operations and functions

Logic gates process data and generate outputs using Boolean algebra and truth tables (Figure 1) to define operations for all binary input combinations: 0 (false, low) and 1 (true, high).

**Figure 1.** A truth table for a 2-input AND gate, showing the output (Q) for each combination of binary inputs (A and B). (Image: Keysight)

Digital systems combine various logic gates (Figure 2) to perform complex operations, such as data comparison, mathematical calculations, and sequential execution. Additionally, logic gates play a fundamental role in the design of key memory components (including flip-flops and registers (which store and process data) and in systems requiring multiplexing, demultiplexing, and synchronization.

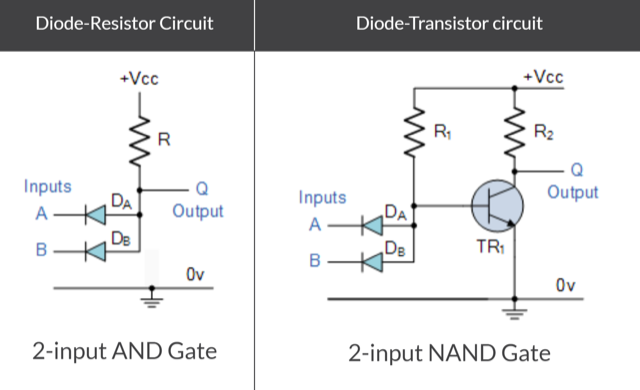

Figure 2. Schematic diagrams of a 2-input AND gate, a 2-input NAND gate. As illustrated, transistors modulate current flow, while diodes ensure current travels in a single direction. (Image: Electronics Tutorials)

Logic gates are essential in mixed-signal systems. They convert analog inputs to digital signals through threshold detector circuits. Logic gates also facilitate interaction between different analog and digital components and provide digital controls for switching modes and system toggles.

In mixed-signal ICs, logic gates enable digital signal processing (DSP) for cameras, smartphones, and audio systems. They also regulate power supplies, manage power states, and implement power-on reset functions. Lastly, logic gates support clock generation, synchronization, and signal routing in digital circuits.

From NAND to NOR: the seven most common logic gates

Many logic gates perform specific functions, whether independently or in combination with other gates. The seven most common gates (Figure 3) include:

Figure 3. Symbols for the seven most common logic gates used in digital circuit design and mixed-circuit systems. (Image: Cadence)

AND: Processes two or more inputs, generating a high output (1) only when all inputs are high. AND functionality is crucial for control circuits, enabling actions when verifying multiple conditions.
OR: Evaluates two or more inputs, outputting high (1) if any input is high. Used in alarm systems, OR logic gates trigger a response upon activation of any sensor.
NAND: Generates the inverse output of an AND gate, outputting low (0) only when all inputs are high. A universal gate, NAND, is foundational in creating other logic gates and complex circuits such as arithmetic logic units, multiplexers, and digital counters. Moreover, NAND provides digital control for mixed-signal system operations and plays a vital role in memory circuit flip-flops and latches.
NOR: Delivers the opposite output of an OR gate, outputting high (1) only when all inputs are low. Foundational to digital circuit design, NOR supports the construction of various logic gates through interconnection in specific configurations. Key use cases span memory circuits, alarm systems, digital locks, and power management.
XOR: Delivers a high output (1) when inputs differ. XOR logic gates are critical for identifying mismatched inputs, error detection, parity checks, and data encryption. Integral to signal conversion between analog and digital forms, XOR gates also enable DSP for cameras, smartphones, and audio systems.
NOT: Inverts its single input, outputting low (0) for high input and vice versa. Essential for signal-level inversion, these logic gates convert analog inputs to digital through mechanisms like threshold detector circuits. They are also used to deactivate functions and systems. NOT logic gates trigger immediate, system-wide emergency shutoffs.
XNOR: Outputs high (1) when inputs are identical, complementing XOR’s functionality. Used for equality checks, digital signal conditioning, and user input verification, XNOR logic gates determine uniformity among logic circuit inputs. Additionally, XNOR gates facilitate signal routing alongside clock generation and synchronization.

Notably, three-state, or tristate, logic gates introduce an additional ‘high impedance’ state beyond the standard logic 0 and logic 1 binary outputs. This state effectively disconnects the gate from the circuit, minimizing interference and allowing multiple devices — such as memory circuits — to simultaneously use the same bus lines for reading and writing data.

Figure 4. Diagram of a tristate buffer gate, illustrating its ability to control output through an enable signal — allowing the gate to either pass the input signal or enter a high-impedance state. (Image: All About Circuits)

Three-state logic gates (Figure 4) simplify circuit design, supporting complex configurations with fewer components. For example, a circuit requiring eight AND gates can achieve the same functionality with a single three-state gate.

The advantages of TTL and CMOS

Logic gates are typically manufactured using transistor-transistor logic (TTL) or CMOS technologies, each offering unique benefits. TTL uses bipolar junction transistors (BJT), incorporating both negative-positive-negative (NPN) and positive-negative-positive (PNP) types, while CMOS employs complementary configurations of MOSFETs and, in certain designs, junction field-effect transistors (JFETs).

Although some specialized logic gates are based on resistor-transistor logic (RTL), diode-transistor logic (DTL), and emitter-coupled logic (ECL) technologies, TTL and CMOS are the most popular due to their efficiency and integration capacity. For example, TTL delivers fast switching speeds and robust signal levels, while low-power CMOS provides high noise immunity, scalability, and lower static power dissipation.

TTL is often used in applications that require high-speed digital logic operations, such as older or simpler digital devices. Offering low power consumption and high noise immunity, CMOS targets battery-operated devices and modern ICs that prioritize energy efficiency and compact design.

Summary

Logic gates employ Boolean algebra and truth tables to efficiently process data and generate precise outputs for various digital and mixed-signal analog applications. Many different types of logic gates perform specific functions, whether independently or in combination with other gates, such as AND, OR, NOT, NAND, NOR, XOR, and XNOR. While most logic gates are typically manufactured using TTL or CMOS technologies, some specialized gates rely on RTL, DTL, and ECL architectures.
