What is formal verification, and why is it important?

January 15, 2025 By Aharon Etengoff

Formal verification uses mathematical analysis to ensure semiconductor designs perform as intended. Typically automated, it efficiently identifies critical design errors, such as deadlocks, race conditions, and unreachable states. This article reviews the fundamentals of formal verification in semiconductor design, explores its integration with simulation for comprehensive validation, and highlights strategies for optimizing implementation.

Defining formal verification in semiconductor design

Formal verification leverages mathematical techniques such as model checking, theorem proving, and equivalence checking. These methods span logical (combinational) and sequential approaches, as shown in Figure 1.

formal verification

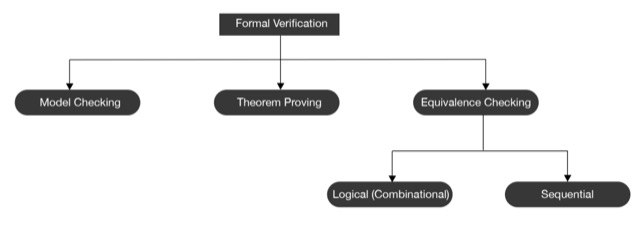

Figure 1. A detailed illustration of the formal verification process highlighting core methodologies and hierarchical structure. (Image: ChipLogic)

Unlike simulation, formal verification doesn’t require a conventional testbench or depend on stimuli or manual input patterns. This allows engineering teams to begin verification early in the design cycle and identify bugs or flaws as soon as the register-transfer level (RTL) code is available.

Formal verification transforms constraints, checkers, and RTL into mathematical equations, representing the chip design as a network of logic gates and flip-flops. Electronic design automation (EDA) tools for formal verification leverage advanced algorithms and methodologies such as binary decision diagrams (BDDs), satisfiability (SAT) solvers, and satisfiability modulo theories (SMT) solvers. These tools independently analyze each checker and its associated constraints. If an assertion fails, they generate a counterexample (CEX), producing a waveform that illustrates the error.

Notably, bounded proof is a key feature of formal verification. It provides practical insights into chip behavior over a defined period by analyzing an assertion within a specific number of clock cycles, even without covering all possible states. For example, system designers might program a bounded proof to analyze up to 50 clock cycles in a digital communication protocol. If the protocol reaches a stable state within 20 cycles, additional verification is unnecessary.

The role of formal verification in comprehensive validation

Formal verification complements simulation and emulation, enabling engineering teams to comprehensively validate individual components and overall system functionality. It is critical in early bug detection, particularly in safety-critical applications such as automotive systems, medical devices, and security-critical components requiring EAL7 certification.

Formal verification is implemented during early design stages, when test benches might be incomplete, and in late-stage updates, such as engineering change orders (ECOs), which require rapid validation without extensive simulations. It also functions as a secondary check for synthesis tools, verifying their accuracy and reliability while supporting power management verification and ensuring robust functionality of design blocks.

Formal verification ensures correct behavior under diverse operating conditions by mathematically analyzing known states and input combinations. It excels at identifying corner-case bugs, such as deadlocks and race conditions, that simulations with limited state coverage may miss. Additionally, it validates adherence to specific design requirements, such as ensuring each instruction fetch is followed by an instruction decode. Representing this sequence as an assertion reduces reliance on simulation cycles later in the design process.

Strategically implementing formal verification and simulation

Practical limitations, such as hardware resource constraints, can present challenges during the formal verification process. In large-scale designs, for example, the exponential growth of state space often prevents the full proof of all assertions. To address these challenges, system designers employ advanced formal verification techniques, including:

  • Cone of influence reduction: focuses analysis solely on logic relevant to a specific property, minimizing the scope.
  • Abstraction refinement: begins with a simplified design model, incrementally adding detail to resolve ambiguities or inaccuracies.
  • Compositional verification technique: divides the design into smaller components, allowing individual verification and improving scalability, as shown in Figure 2.

    formal verification

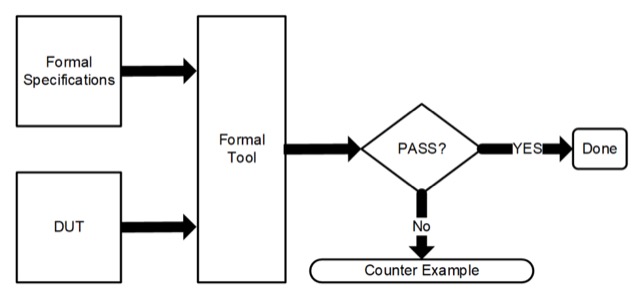

    Figure 2. A flow diagram outlining the formal verification process, focusing on how specifications, tools, and counterexamples interact to validate design correctness and manage state-space complexity. (Image: AnySilicon)
formal verification
Figure 3. A diagram illustrating the simulation-based verification process, highlighting how stimuli generation, results comparison, and the reference model collectively validate broader system functionality. (Image: AnySilicon)

System designers strategically and selectively apply formal verification to critical components such as control logic, error-handling mechanisms, and reset conditions. This targeted approach optimizes verification by addressing the most failure-prone areas while incorporating simulation or emulation to validate broader functionality.

For example, verifying every possible state in a network router that manages millions of packets with complex routing algorithms is impractical. Formal verification prioritizes key elements, such as packet forwarding and error handling, while simulation validates overall system behavior, as shown in Figure 3.

Optimizing formal verification with structured methodologies

Incorporating structured methodologies into the formal verification process optimizes semiconductor design and validation. Specifically, system designers can implement the following steps:

  • Convert the system design into mathematical representations to enable formal methods and establish a formal analysis framework (often referred to as a testbench shell) for early tool interaction and analysis.
  • Run automatic property extraction to identify combinatorial loops, arithmetic overflows, and array out-of-range issues while performing dead code analysis to eliminate unreachable or redundant code and streamline verification.
  • Develop a formal test plan to define objectives, specify properties, and identify critical components for verification.
  • Write SystemVerilog Assertions (SVA) to define constraints, behaviors, and outputs for the design under test (DUT), ensuring precise and accurate validation.
  • Leverage immediate assertions to validate conditions at specific execution points, concurrent assertions to monitor design behavior across multiple clock cycles, and coverage properties to assess verification completeness.
  • Apply abstractions strategically to manage complexity and deepen proof coverage for intricate designs while analyzing over-constraints to ensure properties reflect realistic design behavior.
  • Conduct assertion and bounded coverage analysis to evaluate verification completeness and design behavior over specific clock cycles.

Summary

Formal verification uses mathematical analysis to ensure semiconductor designs perform as intended. Unlike simulation, it doesn’t require a traditional testbench or rely on stimuli or manual input patterns. By complementing simulation and emulation, formal verification enables engineering teams to comprehensively and efficiently validate individual components and overall system functionality.
